31 Ford 31 Ford 53 Ford F-100 Pickup
Mopar Suspension Install Page 4



<<   < - 1 - 2 - 3 - 4 - 5 - >   >>
Installation By: Roger Mingle

Pic 31

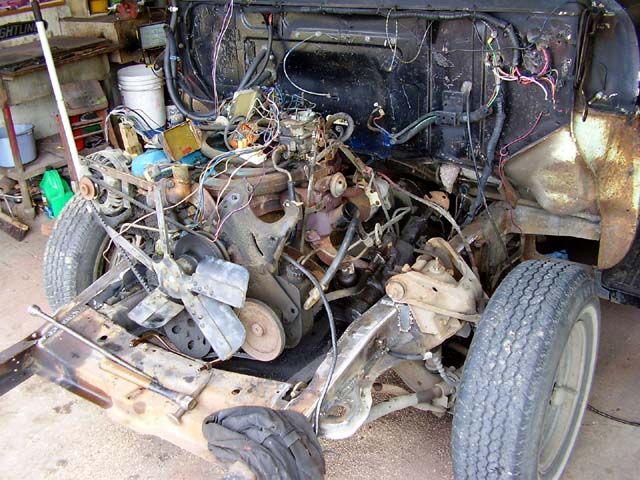

A-arms bolted back in place and the motor set in, Using stock mopar motormounts.

Pic 32

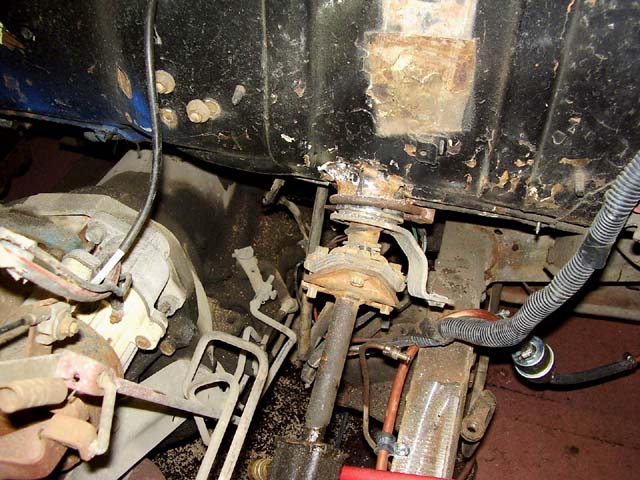

Pic 33

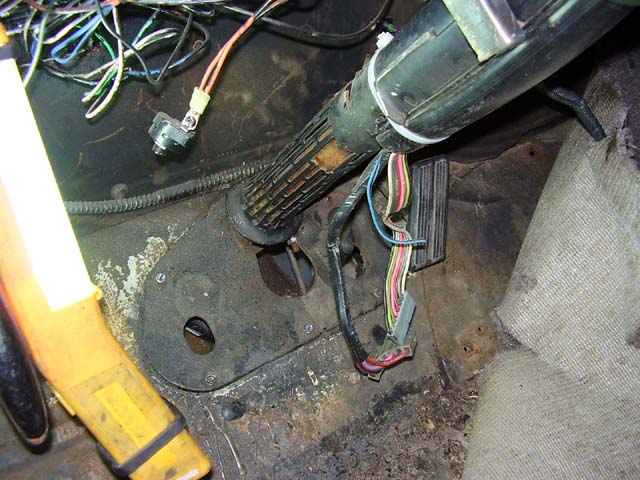

Steering column fits good with temp mount

Pic 35

Pic 34

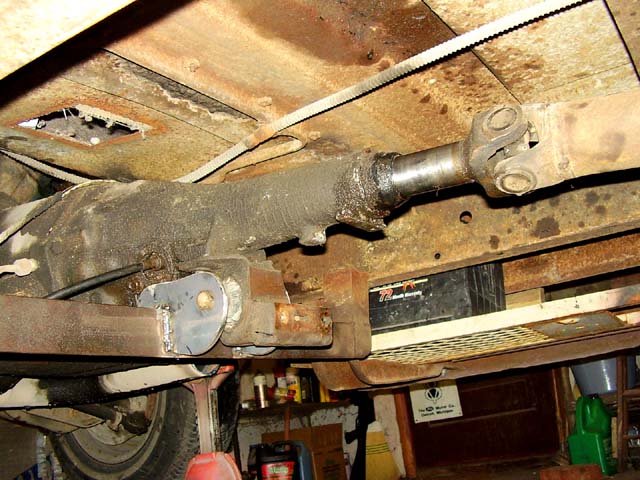

Transmission mounts are made from 1/4" steel plate welded to the same crossmember that held the chevy trans. Real Simple.

Pic 36

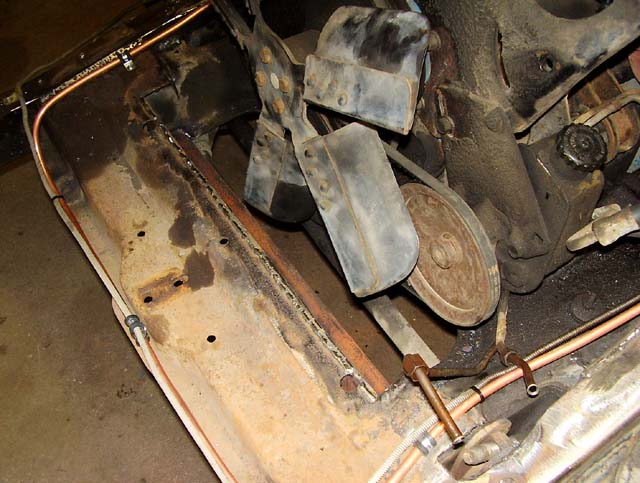

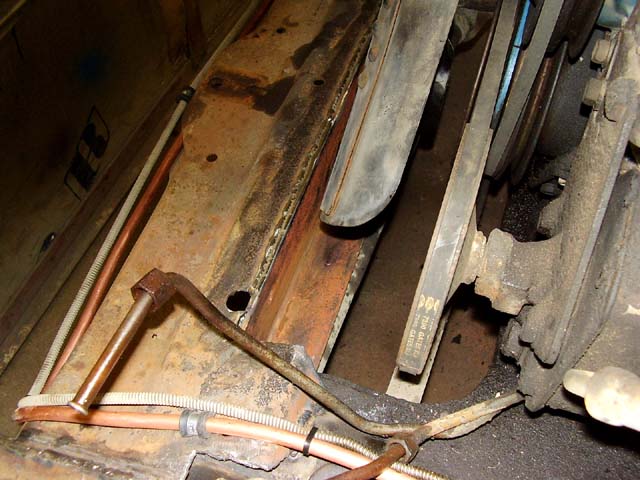

Original front crossmember had to be notched for fan clearance. We used a piece of 1-1/2" X 3" angle iron.

Pic 37

Pic 38

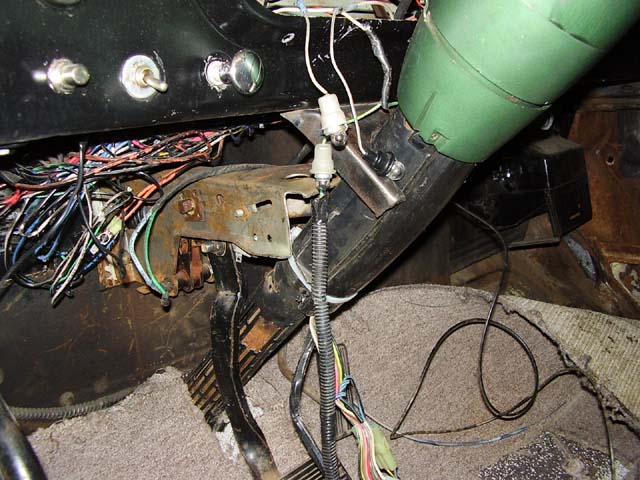

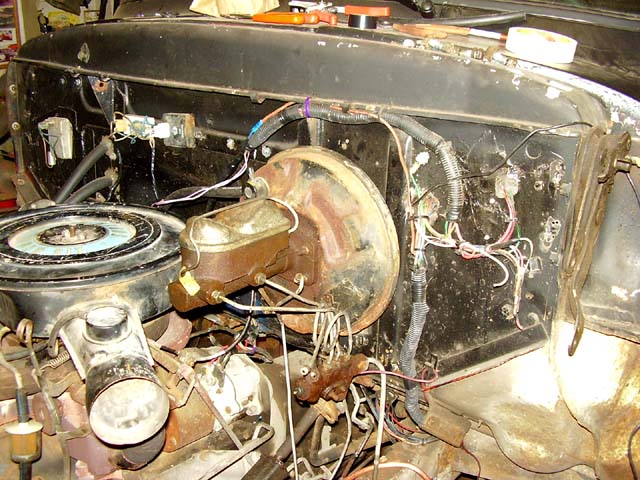

Getting the brake pedal & power booster mounted.

Pic 39

Pic 40

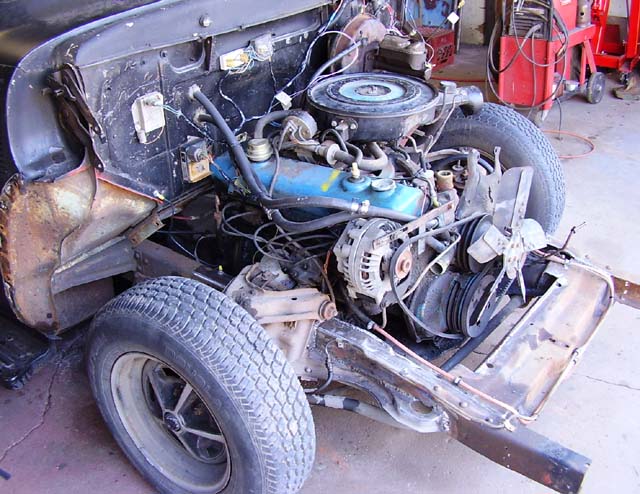

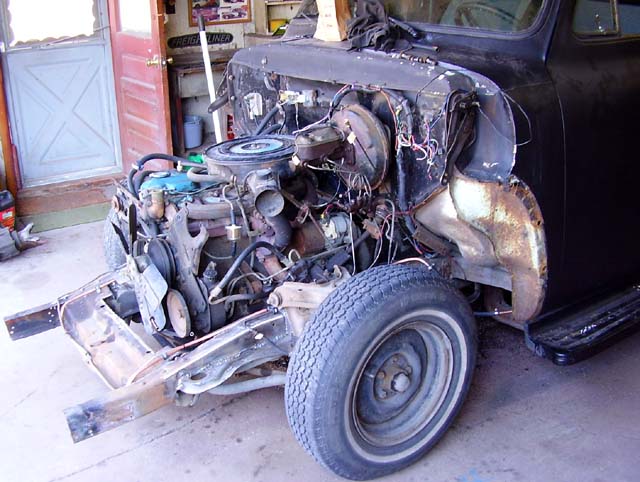

Hooking up all the little stuff, gas lines, brake lines, wiring, throttle linkage, shift linkage, etc.

Pic 41

Installation By: Roger Mingle
